Kirjeldus
M (165-180cm)
XL (185-195cm)
| Raam | – | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Ratta suurus | – | 29″ |
| Käikude arv | – | 16 (2×8) |

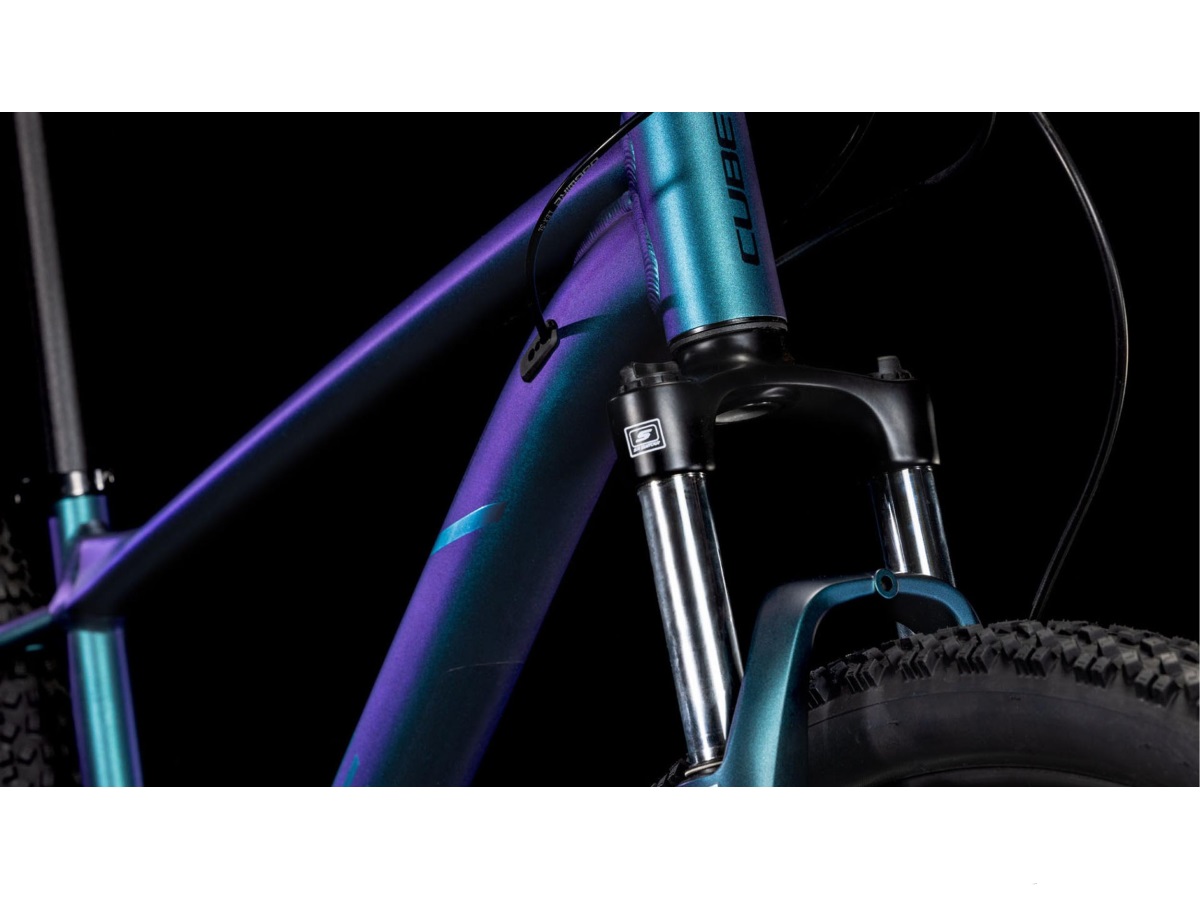

| Amort | – | SR Suntour XCE, 100mm |
| Pidurid | – | Clarks Clout 1, Hydr. Disc Brake PM/PM (160/160) |
| Tagumine käiguvahetaja | – | Shimano RD-TX800, 8-Speed |
| Eesmine käiguvahetaja | – | Shimano FD-M315, Top Swing, 31.8mm Clamp |
| Käiguhoovad | – | Shimano SL-M315, Rapidfire-Plus |
| Keskjooks | – | Thun Paso-ML, 73mm BSA |
| Vändad | – | Shimano FC-M315, 36x22T, 170mm |
| Kassett | – | Shimano CS-HG200, 12-32T |
| Kett | – | KMC Z8.3 |
| Kaelakausid | – | CUBE FPH863, Semi-Integrated |
| Lenksupikendus | – | CUBE Performance Stem, 31.8mm |
| Juhtraud | – | CUBE Rise Trail Bar, 680mm |
| Käepidemed | – | ACID React |
| Pöiad | – | CUBE EX25, 32H, Disc |
| Esirumm | – | CUBE Alloy Light, QR, 6-Bolt |
| Tagarumm | – | CUBE Alloy Light, QR, 6-Bolt |
| Väliskummid | – | CUBE MTB, 29×2.25 |
| Sadul | – | ACID Venec Lite |
| Sadulapost | – | CUBE Performance Post, 27.2mm |
| Sadulaklamber | – | CUBE Varioclose, 31.8mm |
| Pedaalid | – | CUBE PP MTB |
| Kaal ca. | – | 14,5 kg |
